Features of Pad-Mounted Transformer
- Feature fully enclosed design without exposed live parts, achieving high safety level to be directly installed in pedestrian areas;
- Rapid installation process due to high integration of the pad-mounted transformer, significantly reducing construction time;
- High reliability to extend service life, decreasing maintenance works and is suitable for unattended operation;
- Support customized design to integrate with existing environments, suitable for various different applications;
- ZHONGSHAO has obtained multiple international certifications to ensure high product quality, such as ISO, UL, CUL, CCC, etc.
Your Reliable Pad-Mounted Transformer Supplier China
As a reliable pad-mounted transformer supplier, ZHONGSHAO ensures high product quality. ZHONGSHAO’s pad-mounted transformer features high performance on corrosion resistance, safety, durability, and compatibility. It is widely used for various applications from residential areas to industrial factories, achieving high power supply efficiency. The pad-mounted transformer also obtains multiple international certifications such as ISO, UL, CCC, and more. If you have any questions about this type of transformer, please feel free to contact us for customized solutions.

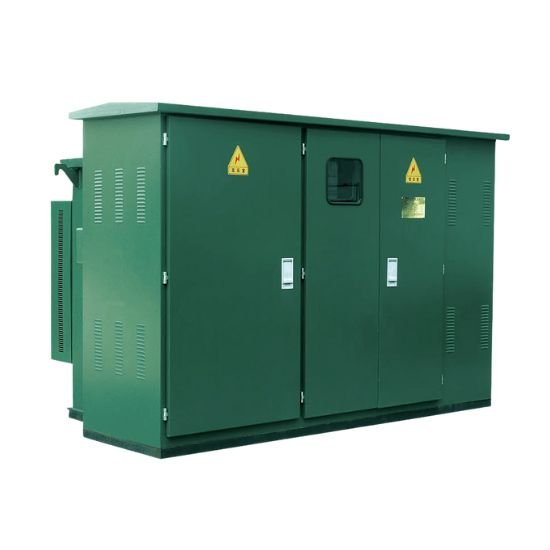

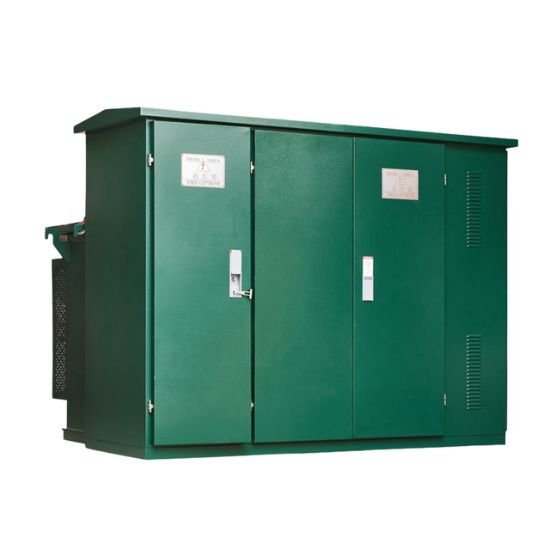

A 480v output voltage three winding coil number oil immersed typed outdoor american type low loss pad mounted transformer with 12.47kV input voltage.

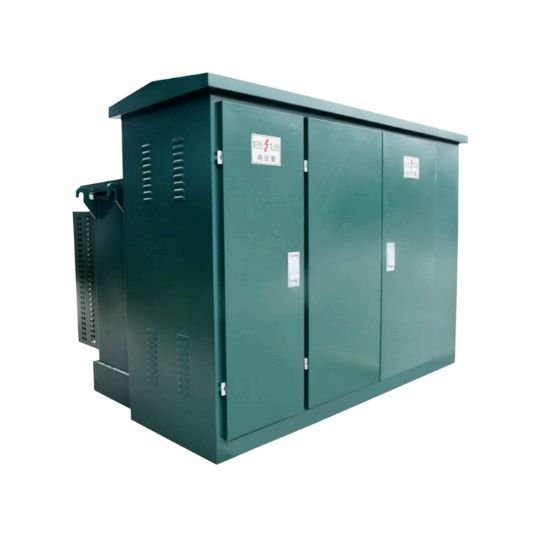

A three phase multi winding coil number iron core pad mounted transformer with custom input and output voltage and a custom coil structure available.
A 60Hz frequency power distribution factory direct pad mounted transformer with a copper and aluminum material coil winding and a 480V output voltage.

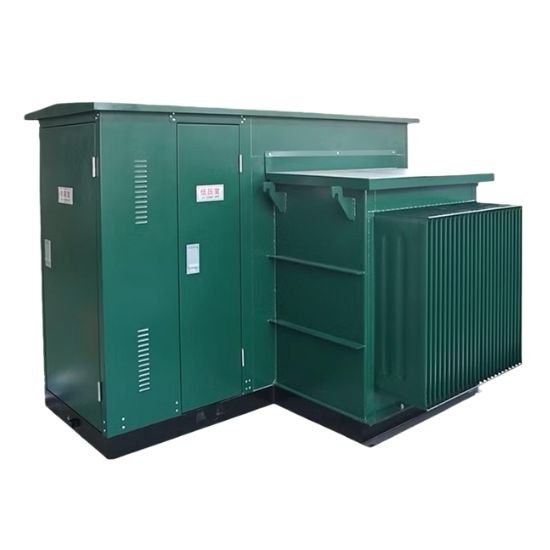

A copper/aluminum material coil winding pad mounted transformer with 13.2kV input voltage and a 440V output voltage and a rated capacity of 1250kva.
An oil immersed two winding coil number made with copper and aluminum material and has a fully sealed construction, this three phase pad mounted transformer has a 690V output voltage.

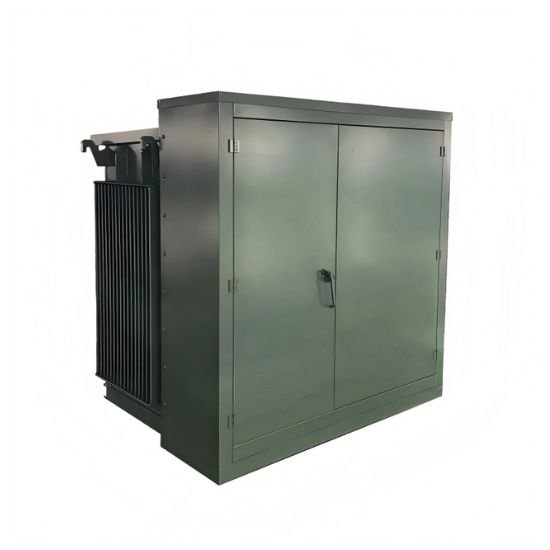

A high frequency 480V three phase pad mounted transformer with an aluminum and copper material and is an oil immersed type transformer.
A pad mounted power distribution transformer with customizable input and output voltage and has a high frequency available.
A 12.47kV input voltage and 415 output voltage three phase pad mounted transformer with 60Hz frequency and is made with high quality aluminum material.
What is Pad-Mounted Transformer
A pad-mounted transformer is a type of enclosed transformer, and is installed on the ground with a concrete base. It is used to convert medium voltage power from the grid into low voltage power that can be directly used. This low voltage power is finally distributed to the end applications such as office buildings, factories, residential communities, and more. The pad-mounted transformer offers high performance on safety, durability, and maintenance, and is suitable for various environments.
Types of Pad-Mounted Transformer
Based on the number of phases and structural configuration, the pad-mounted transformer can be divided into single-phase and three-phase pad-mounted transformers. The two types of transformer feature significant differences in capacity, application, and installation method. Learning their features and differences may help you make a wise purchase decision.

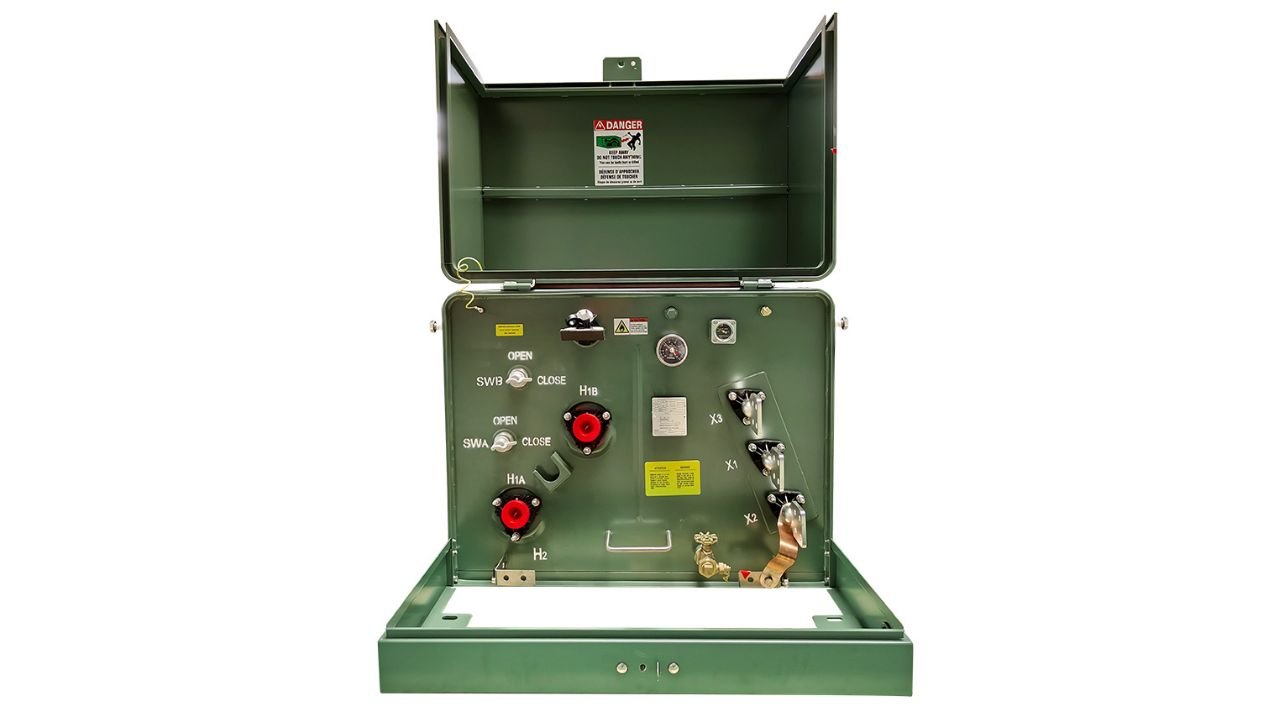

Single-Phase Pad-Mounted Transformer
- Features: The structure of this type of transformer is simple to occupy a small area. This tight structure makes it suitable to be deployed in limited space such as roadside areas and green belts. The single-phase pad-mounted transformer offers a relatively low capacity about 10 kVA- 167 kVA. Common output capacity of the transformer includes 120/240V or 240/480V.
- Advantages: Single-phase pad-mounted transformers are simple to build and offer short construction cycles, which is suitable for rapid development projects. Although its capacity is small, it supports distributed deployment to meet the electric requirements of large-scale projects. This transformer also features a long service life to reduce your maintenance cost.
- Applications: The single-phase pad-mounted is suitable to be used in applications with dispersed loads, limited capacity, and predominantly residential electricity demand. It includes residential communities, stringlight systems, small public facilities, and others.
Three-Phase Pad-Mounted Transformer
- Features: The three-phase pad-mounted transformer features a wide range of capacity within 75 kVA- 2500 kVA or higher, making it suitable for most commercial and industrial applications. It offers three-phase output voltages such as 208V, 400V, and 480V to adapt to high-load equipment. This type of transformer also supports various different wiring configurations based on the load type.
- Advantages: The three-phase pad-mounted transformer offers flexible wiring options, enabling high compatibility with various grid standards. It also supports large-scale expansion for future development. High reliability of the three-phase pad-mounted transformer achieves maintenance without power interruption.
- Applications: This type of transformer is widely used for various industries, such as workshops, factories, wind farms, energy storage systems, data centers, etc. It is also suitable for various critical infrastructure projects.
Advantages of Pad-Mounted Transformer
Safety
A pad-mounted transformer typically features a completely enclosed structure that cannot be opened without authorization to protect and encapsulate the high-voltage equipment. This not only ensures normal operation without any external disturbances, but also prevents electric shock risks to protect pedestrians. If the interior is damaged or failed, the high-strength structure of this transformer also limits the failure within the enclosure, protecting surrounding equipment and pedestrian safety. Even in a harsh environment, the pad-mounted still maintains stable operation through its excellent corrosion resistance and sealing performance.
Flexible Installation
Compared to traditional substations, the pad-mounted transformer does not require additional substation building or fencing. It just needs to be combined with a concrete foundation to achieve the installation process. For some commercial and urban projects that are sensitive for space layout, this type of transformer offers a small footprint to reduce 40%- 70% construction costs for you. The pad-mounted transformer also can be installed close to the load, decreasing the electrical lines loss while also optimizing system efficiency.
High Reliability
The pad-mounted transformer typically features sealed tank structures to reduce harmful effects or pollution caused by environmental factors. It offers high reliability to ensure stable operation for long terms of use. In addition, the insulating oil of this transformer is isolated to air, significantly reducing oxidation risks. Due to its enclosed structure, core components of the pad-mounted transformer can be protected to decrease the fail rate, thereby extending its service life. If your project has demands on stability, the pad-mounted transformer is a good choice.
High Environmental Integration
By spraying different paints or adjusting enclosure materials, the pad-mounted transformer can be integrated with urban environments. This type of transformer also supports customized design, such as stone-like finishes, wood grain patterns, and other texture applications. Unlike traditional box transformers, the pad-mounted transformer causes less environmental disruption, meeting the high standards for construction aesthetics.
Controllable Cost
Pad-mounted transformers offer a simple construction process and are easy to transport, which means it can shorten the overall project timeline. This type of transformer features high equipment integration to reduce the purchase cost of additional components. Its tight footprint also allows flexible layout, saving land expenses for you and improving the overall land utilization efficiency. In addition, high reliability of the pad-mounted transformer provides a low failure rate and long maintenance cycle for you to ensure continuous production.
Applications of Pad-Mounted Transformer
Residential Communities
Due to its high reliability and safety, the pad-mounted transformer is widely used for residential communities. For applications with a high population density such as sidewalks and public areas, this type of transformer protects residents from risks of electric shock. It is also suitable for urban roads, parks, and landscape projects, reducing construction costs for you.
Commercial District and Public Buildings
The commercial districts and public buildings generally have strict demand on the space layout, aesthetics, and safety of a transformer. The pad-mounted transformer supports customized materials or exteriors to harmonize with other buildings’ styles, meeting the environmental aesthetic requirements. It also features zoned power distribution and modular design to offer flexible capacity expansion.
Industrial Parks
The pad-mounted transformer has significant advantages that it is suitable to be installed close to the load. This can not only reduce electrical lines loss, but also improve the stability of power supply, making the transformer more suitable for applications with continuous high loads. Its enclosed structure also prevents dust and other corrosive gases within the industrial environment, extending the service life while also keeping stable operation.
New Energy Industry
For the new energy industry, the pad-mounted transformer features a high-protection enclosure to maintain normal operation in the harsh environment. Rapid deployment advantages of the pad-mounted transformer make it more necessary for wind farms, photovoltaic, and high-power EV charging stations. It can meet the large load requirements of multiple DC charging stations operating with high power, offering stable and reliable power supply.
In short, the single-phase pad-mounted transformer is suitable for applications with low load and distributed power supply requirements. For example, the residential areas, rural grids, and small commercial facilities are common applications of this type of transformer. While if your project involves a significant amount of motor equipment like industrial factories, the three-phase pad-mounted transformer is more suitable.
Yes. But the loop feed is typically used in the scenarios that have high demands on power supply continuity, such as data centers, commercial campuses, and others. If you just need a simple power supply, the radial feed is sufficient, reducing resource waste.
The pad-mounted transformer is easy to maintain due to its high reliability and durability, but regular check and electrical tests are still necessary. You should regularly check the oil level quality within the transformer to ensure safety. The tightness of terminal connections and sealing performance of the enclosure should be also inspected.
Common insulating oils include mineral oil, FR3 plant-based insulating oil, and more. The mineral oil is a type of mainstream insulating oil used in the pad-mounted transformer, and is cost-effective. While the FR3 oil is more suitable for projects that have high fire safety demands. It is biodegradable and features good flame retardancy.
