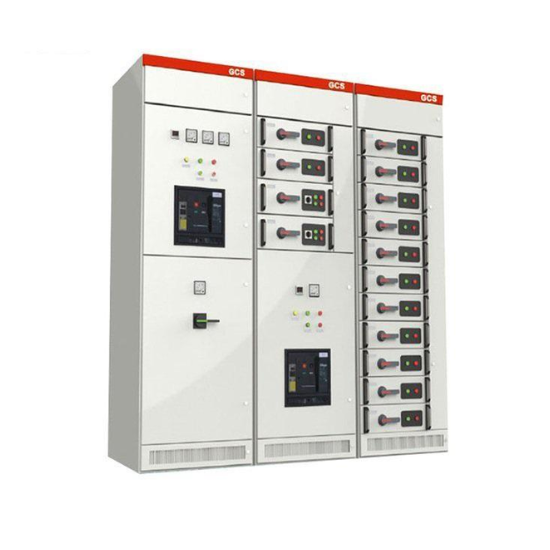

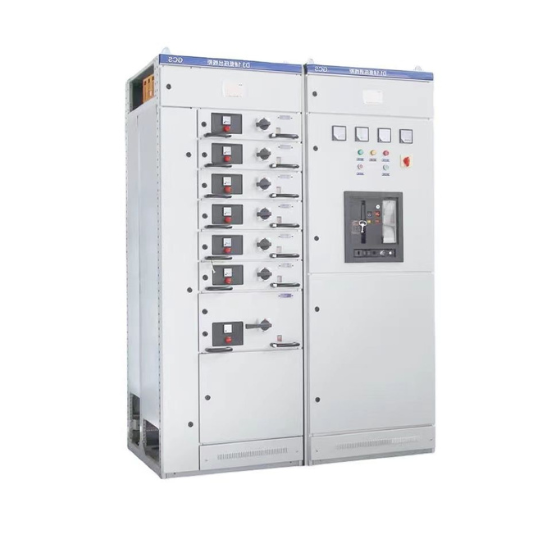

A low voltage 3 phase and 3 wire GCS electrical motor control center with 50Hz/60Hz frequency and has a rated current of 3150Amp.
A custom number of sockets, custom rated current, and custom rated voltage smart power industrial motor control center with stainless steel material.

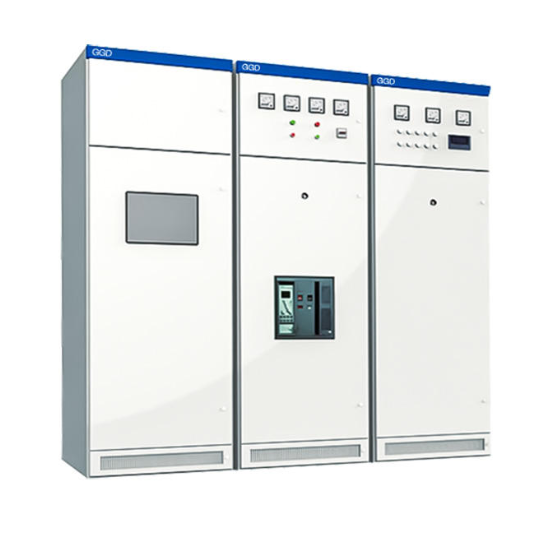

A high quality industrial stainless steel material electrical motor control center with custom rated current and a high rated voltage available.

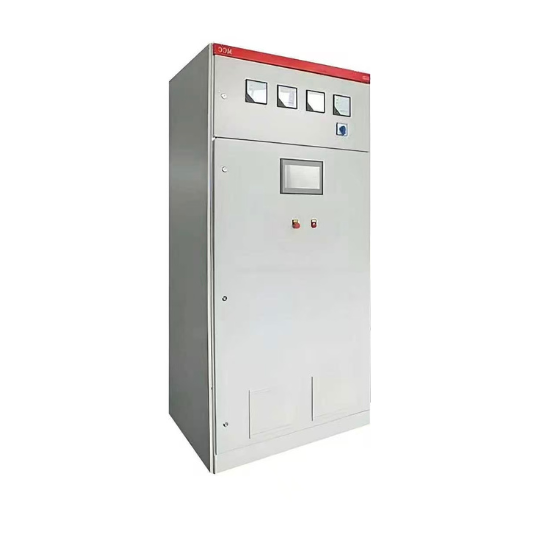

A widely used floor standing industrial automation motor control center equipment for electricity energy distribution.
An indoor and outdoor factory direct motor control center with 380V rated voltage and 630Amp rated current and has a customizable number of sockets.

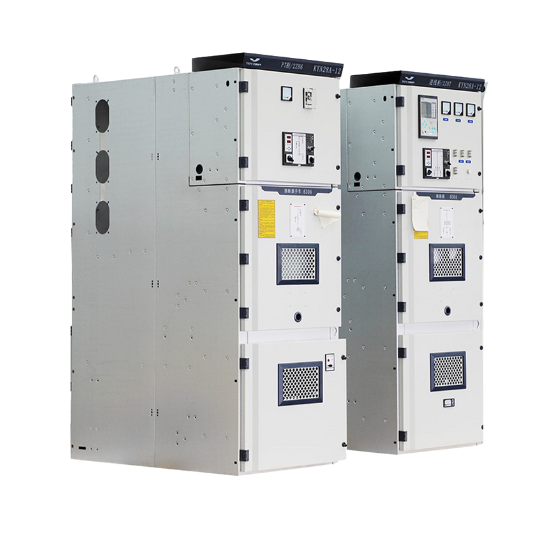

An energy saving custom color and steel material drawout type motor control center with customizable voltage and rated current.

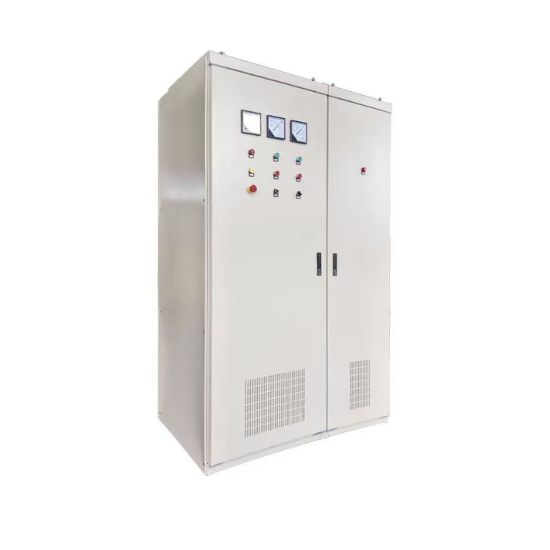

A 440V rated voltage and 150Amp rated current industrial electrical motor control center made with high quality and durable carbon steel material.

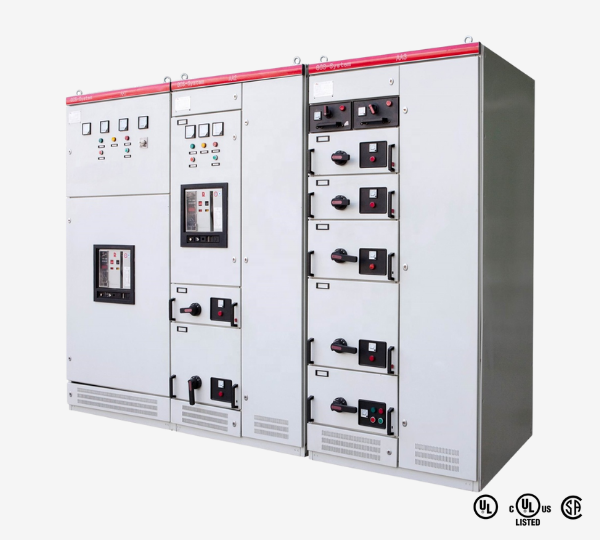

What is a Motor Control Center？
The motor control center(MCC) serves to centrally control and manage multiple motors, delivering more concise management and safer circuits for large-scale commercial and industrial applications. It comprises numerous components, including circuit breakers, contactors, and relays, enabling remote automated and intelligent power initiation, distribution, control, and protection by a single device.
Why Use Motor Control Centers？
Enhancing Management Efficiency
Compared to conventional motor control methods, the motor control center streamlines operational procedures. Therefore, its management is simpler and more convenient, and its operation is faster. Particularly for large-scale power projects, it enables centralised control of multiple motors. Its user-friendly interface facilitates easier coordination of motor systems. Furthermore, automated and remote control capabilities further enhance management flexibility.
Enhanced Circuit Stability
Many steps within the motor control centre are automated, minimising the risk of error. Its diverse protective devices—such as circuit breakers and overload relays—enable swift responses both before and immediately upon the occurrence of risks. It employs a modular design, meaning that should a single motor require repair, other motors can operate normally. This significantly elevates circuit reliability.
High Cost-Effectiveness
The initial costs of motor control centers are high, but they require lower maintenance and labour expenses. Moreover, thanks to variable frequency drives and intelligent distribution systems, they can reduce your energy expenditure. Furthermore, the modular design of the motor control center allows for the replacement or expansion of systems at any time without purchasing new equipment. It brings outstanding cost-effectiveness for large-scale projects and long-term usage.
Convenient Maintenance
On the one hand, you can easily trace the cause of faults through the motor control center and implement swift resolutions directly within the central system. On the other hand, Thanks to modular, you need not interrupt the entire system during maintenance. This minimises maintenance time and costs.
Working of the Motor Control Center
Motor Control
You may swiftly control the start-stop and speed of multiple motors via the contactors within the motor control center. Furthermore, you may select intelligent control and remote control options to overcome distances and minimise the risk of errors arising from worker operation.
Power Distribution
The motor control center comprises multiple motors, each connected in series to the main horizontal busbar. Upon receiving power, the center distributes it to individual motors, permitting the system’s motors to operate normally.
Real-Time Monitoring and Protection
The motor control center’s diverse sensors continuously monitor the power system’s status and promptly report conditions. Its intelligent system performs predictive assessments, significantly reducing the probability of errors. Upon detecting power faults, it intelligently activates circuit breakers for emergency response, preventing further severe risks.

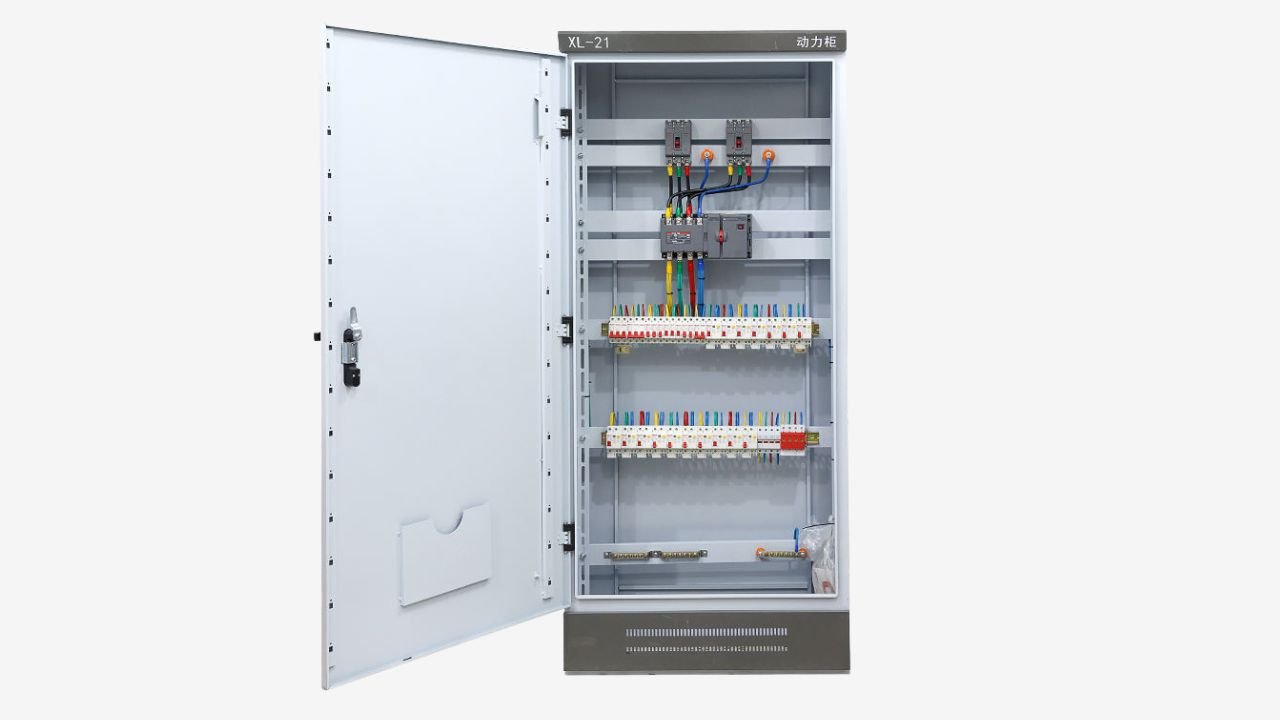

Components of a Motor Control Center
Circuit Breaker

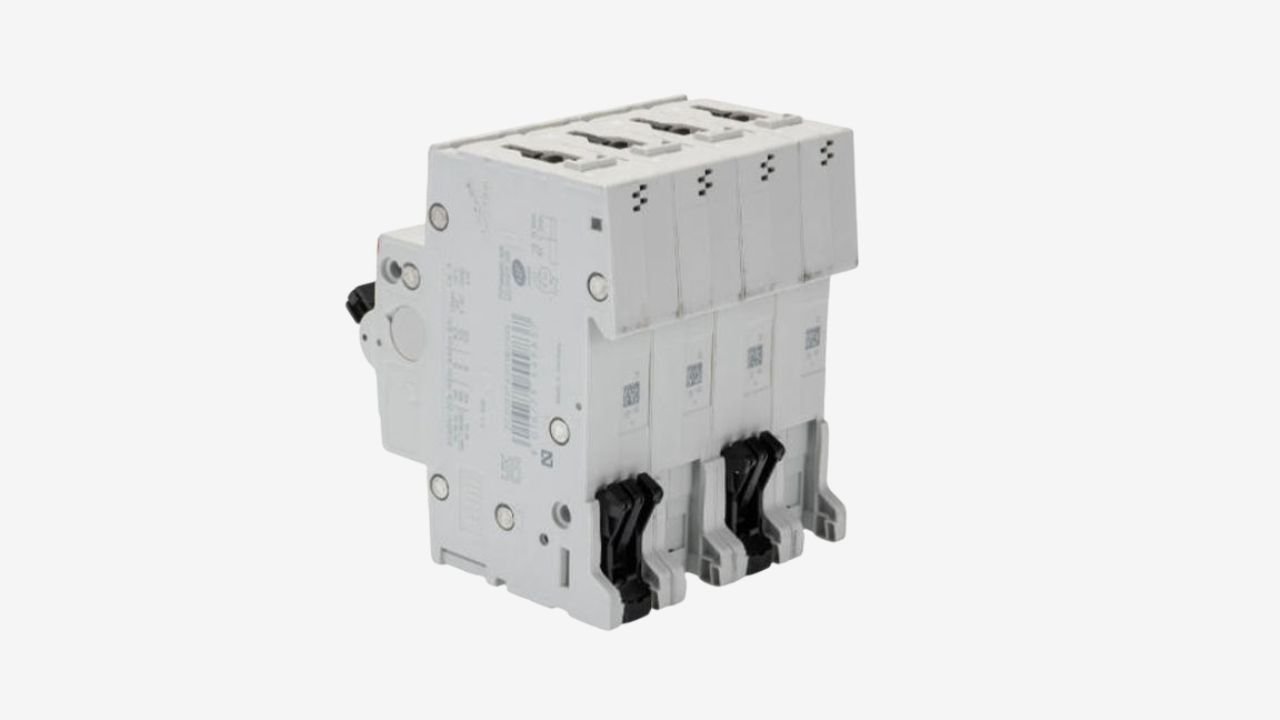

Circuit breakers regulate the current flowing through distribution boxes and motors within motor control centers, preventing overloads and short circuits. In the event of a circuit system fault, they receive signals and promptly interrupt the current to safeguard the motor control center from broken. This ensures circuit safety and extends the operational lifespan of the motor control center.
Contactor
The contactor is employed to switch motors on and off. It incorporates automatic and remote control capabilities, providing automated control for high-power electric motors.
Overload Relay
The overload relay continuously monitors the current and voltage conditions within the motor control center. When a fault occurs, it promptly transmits signals to components such as circuit breakers. Working in tandem with circuit breakers, it rapidly interrupts the current flow to achieve an efficient response.
Busbar
Within the motor control center, the busbar is responsible for current distribution, playing a vital role in the power supply process to ensure the stable operation of all motors.
Control Interface
The control interface of the motor control center features a streamlined and user-friendly design, allowing you to adjust various settings and monitor in real time. Additionally, warning notifications are relayed via the control interface, thereby enhancing maintenance efficiency.
Variable Frequency Drive
A variable frequency drive adjusts electrical frequency and voltage according to current operational requirements. It ensures a stable power supply and minimises energy loss.
What are the Types of Motor Control Centers

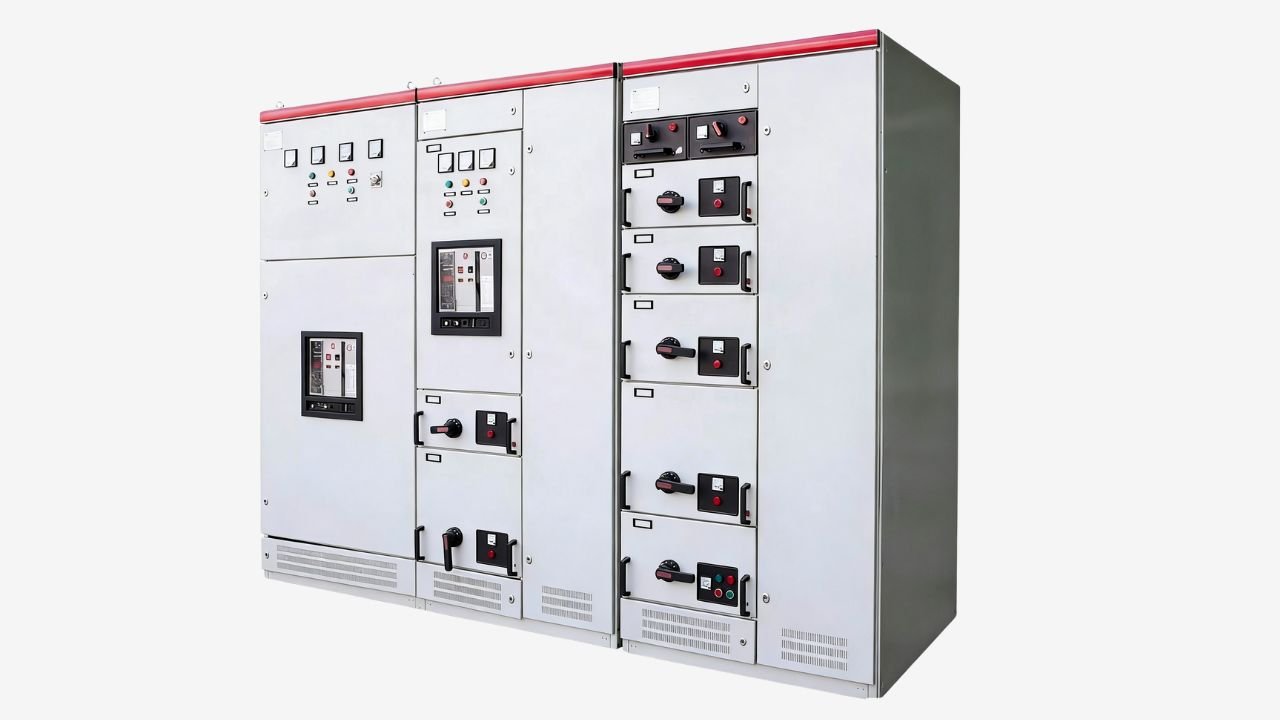

Fixed-Type Motor Control Centers
All components within a fixed motor control center are permanently installed within the control cabinet and cannot be moved. This design offers high stability and simplicity, whilst also being cost-effective. However, as internal components cannot be altered or removed, maintenance proves challenging. Should a fault occur, the entire system becomes inoperable.
Draw-out Type Motor Control Centers
Each component within the pull-out motor control center is independently mounted on a tray. This design renders it modular, allowing you to augment or modify the existing configuration as requirements evolve without necessitating the purchase of new equipment. Furthermore, maintenance proves considerably more convenient; servicing a single module requires no system shutdown. If you are seeking a suitable motor control system for projects requiring frequent maintenance, this solution is an excellent choice.

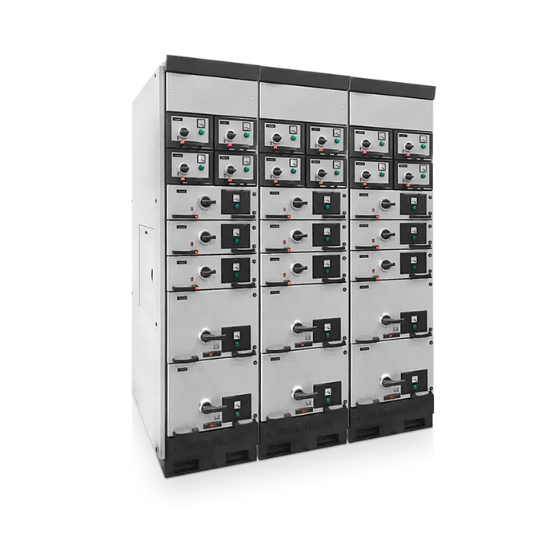

Intelligent Motor Control Centers
The intelligent motor control center integrates various smart devices to achieve high levels of automation, and you can choose for large-scale projects and applications demanding high efficiency. It enables intelligent start/stop functions, control and monitoring, alongside predictive early warning and protection capabilities. Consequently, it delivers exceptional stability and control efficiency. Although its initial cost is higher, the resulting savings in labour costs, energy expenditure and other areas yield greater overall benefits.
Motor Control Center Panels Uses
Industrial Manufacturing
Within industrial manufacturing, motor control centers enable the centralised management of numerous motors in production lines, such as those in food processing, machinery manufacturing and pharmaceuticals. They optimise the power systems of production lines, ensuring normal working and minimising downtime errors. Their deployment in high-volume industrial manufacturing or critical projects delivers enhanced stability and more efficient management.
Energy Industry
Motor control centers are essential for power management in generating equipment within power stations and for electrical distribution in substations. They not only ensure the operation of wind, hydro and solar power generation facilities but also facilitate the continuous and stable transmission of distributed electricity. Furthermore, the efficient operation of various high-power equipment in energy extraction relies upon motor control centers.
Commercial
Motor control centers may be employed in commercial buildings such as shopping centers, hospitals, and underground stations that possess extensive electrical systems. They provide streamlined, efficient control for complex and intricate power systems. Furthermore, they offer continuous monitoring and enhanced safety. For critical facilities, including hospitals and data centers, they minimise downtime, achieving non-stop operation

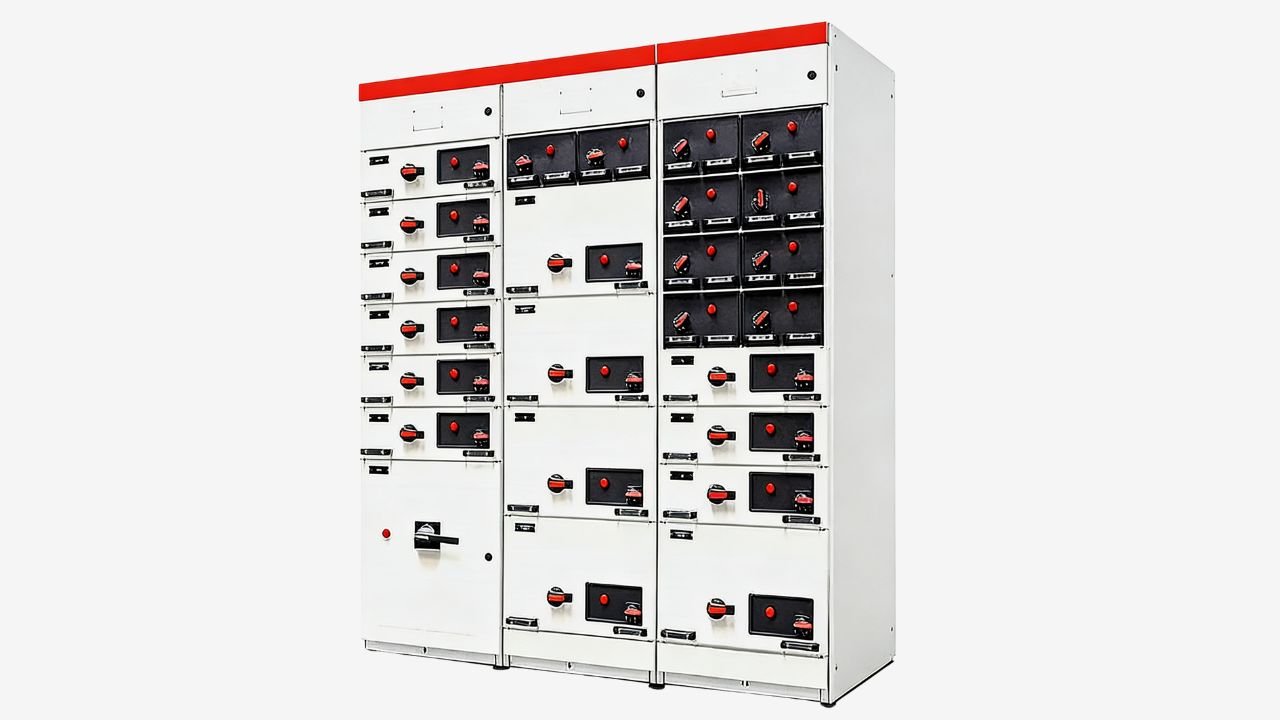

Motor Control Center(MCC) vs Power Control Center(PCC)
- Function: The motor control center (MCC) primarily integrates multiple motors into a centralized control system, bringing more efficient operation. The power control center’s principal function is power distribution, supplying electricity to facilities to ensure the proper functioning of various equipment.
- Installation: MCCs may be installed outdoors, whereas PCCs are typically deployed indoors and positioned near the main power supply.
- Applications: You may utilise MCC and PCC across various industrial and commercial settings. It is possible to equip facilities with both MCC and PCC systems concurrently.
Motor control centers and power control centers possess different functions and are not interchangeable. You may select either according to your requirements, or utilise both simultaneously.
High-quality motor control centers specifically designed for outdoor use are available here. They feature more robust and durable enclosures to withstand challenging climatic conditions.
You need to consult the manual to verify compatibility. It is advisable to select components from the same brand that meet the specified standards to ensure performance and enhance safety.
You should base your selection on factors such as project scale, voltage rating, and operating environment. Custom designs can also be provided to ensure seamless integration with existing electrical systems.
Their primary distinction lies in the method of securing internal components. Draw-out motor control centers offer greater flexibility, facilitating easier maintenance and modifications.
